GRAHAM FARISH 372-034SF GWR 4073 'Castle' 5055 'Earl of Eldon' GWR Lined Green (GW Crest) N Gauge Loco Sound Fitted

GRAHAM FARISH 372-034SF  GWR 4073 'Castle' 5055 'Earl of Eldon' GWR Lined Green (GW Crest)  N Gauge Loco Sound Fitted

• Graham Farish N Scale
• Era 3
• Pristine GWR Lined Green (GW Crest) Livery
• Running No. 5055
• Named ‘Earl of Eldon’
• SOUND FITTED – Fitted with a Zimo MS590N18 DCC Sound Decoder – See below the for the function list
• Length 145mm (over couplings)

DETAIL VARIATIONS SPECIFIC TO THIS MODEL

• Collett 4,000-gallon Tender
• Single Chimney
• Inside Cylinder Chest: Box Pattern with Curved Front
• Straight Cylinder Steam Pipes
• Tapered Buffers
• Horizontal Cab Side Handrail
• Rear Sandboxes Behind Cab Steps
• Short Nameplates

GRAHAM FARISH GWR CASTLE CLASS SPECIFICATION

MECHANISM:

• Coreless motor
• Electrical pickup from all driving and tender wheels
• Separate metal bearings fitted to each driving wheel axle
• Metal bearings fitted to each tender wheel axle
• Diecast metal chassis block
• Diecast metal gearbox, with gearing arranged for prototypical running speeds and haulage capabilities
• 9mm (N gauge) wheels to NEM310 standards with authentic profile and detailing
• Traction tyres fitted to the rear driving wheels for assured haulage capabilities
• Valve gear of metal construction
• Discreet fixed locomotive to tender drawbar with integral electrical connections
• Coupling pocket to NEM355 standards fitted to the front bogie
• Removable coupling pocket to NEM355 standards fitted to the tender chassis
• Designed to operate on curves of second radius (263.5mm) or greater

DETAILING:

• High-precision, injection-moulded bodyshell, running plate and tender with separately fitted details parts including smokebox door, lower front lamp irons, steam pipes, whistle and reverser
• Separately applied metal components including handrails, buffers and sand pipes
• Dome, filler cap, water scoop and vacuum pipe added to the tender as separate parts
• Tender fitted with metal coal-effect load

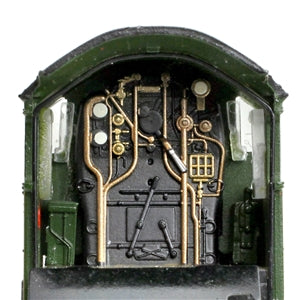

• Detailed cab interior including boiler backhead controls and gauges, brake standard and water scoop standard
• Hinged and posable metal fall plate between the locomotive and tender
• Each model supplied with a full set of accessory parts including dummy screwlink couplings and front vacuum pipe

DCC:

• Next18 DCC decoder interface located in the tender

SOUND:

• Speaker installed in the tender of all models for optimum sound reproduction
• Zimo MS590N18 DCC Sound Decoder fitted to SOUND FITTED versions
• Sound files produced specifically for the Graham Farish GWR Castle Class using recordings from real locomotives
• SOUND FITTED models operate on DCC and Analogue control as supplied

LIVERY APPLICATION:

• Authentic liveries applied to all models
• Multiple paint applications employed on each model using GWR and BR specification colours
• Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours
• Named locomotives are supplied with pre-fitted, fully decorated nameplates

SOUNDS

F1 - Sound - On/Off

F2 - Brake

F3 - Cylinder Drain Cocks

F4 - Rising Toot Whistle

F5 - Reverser

F6 - Coal Shovelling

F7 - Injector

F8 - Blower

F9 - Flange Squeal (Speed Related)

F10 - Safety Valves Lifted

F11 - Handbrake

F12 - Water Tank Filling

F13 - Coupling Clatter

F14 - Light Engine Mode

F15 - Fade All Sounds

F16 - Guard's Whistle & Response (Toot & Vocals)

F17 - High Tone Whistle

F18 - High & Low Whistles

F19 - High Tone Rising Whistle

F20 - Short High Tone Whistle

F21 - Long High Tone Whistle

F22 - Long High & Low Tone Whistles

F23 - Vocals (On - ‘Going under, Bill’ / Off - ‘Righto Norm’)

F24 - Vocals (‘Right o’ way from the Guard’

F25 - Vocals (‘Clear my side’)

F26 - Vocals (On - ‘Green flag’ / Off - ‘Righty-ho’)

F27 - Volume Down

F28 - Volume Up
