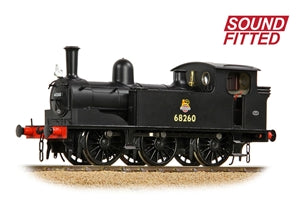

BACHMANN 31-069SF NER E (J71) Tank 68260 BR Black (Early Emblem) Sound Fitted Loco

BACHMANN 31-069SF  NER E (J71) Tank 68260 BR Black (Early Emblem) Sound Fitted Loco

• Bachmann Branchline OO Scale
• Era 4
• Pristine BR Black Early Emblem Livery
• Running No. 68260
• SOUND FITTED – Fitted with a ESU Loksound V5DCC Sound Decoder – See below for the function list
• Length 118mm (over couplings)

DETAIL VARIATIONS SPECIFIC TO THIS MODEL

• Boiler Clack Valves Removed
• Ross Pop Safety Valves with Cover
• Pipe Whistle
• Steam Brakes Only
• Smokebox Door with Numberplate
• Twin Smokebox Door Handles
• Group Standard Buffers with Square Mounts
• Coal Bunker with Coal Rails fitted
• Rear Cab Windows with Bars fitted

BACHMANN BRANCHLINE NER E CLASS (J71) SPECIFICATION

MECHANISM:

• Coreless motor
• Electrical pickup from all wheels
• Separate metal bearings fitted to each driving axle
• Diecast metal chassis block
• Diecast metal gearbox, with gearing arranged for prototypical running speeds and haulage capabilities
• 5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
• Detachable coupling pockets to NEM362 standards fitted at each end
• Designed to operate on curves of second radius (438mm) or greater

DETAILING:

• Diecast metal running plate with integral side tank weights
• Precision moulded plastic boiler, side tanks, cab and bunker
• Separately applied details including splashers, tank filler hatches, safety valves, dome and chimney, smokebox handles, clack valves* and vacuum pipes* (*where applicable)
• Individual metal detail components including handrails, handrail knobs, guard irons, lamp irons and turned metal whistle
• Highly detailed and decorated cab interior including controls, dials, gauges and tool cabinets with separately fitted regulator, reverser and handbrake
• Running gear detailing includes springs, brakes and separately fitted brake gear, sandboxes and sandpipes
• Glazed cab spectacles
• Sprung metal buffers
• Each model supplied with an accessory pack including cab doors, additional bufferbeam pipework, poseable lamps and three-link couplings

LIGHTING:

• Firebox Glow (on analogue) / Firebox Glow & Flicker (on DCC or when SOUND FITTED models are used on analogue)

DCC:

• Next18 DCC decoder interface

SOUND:

• Speaker installed in all models for optimum sound reproduction
• ESU Loksound Micro V5DCC Sound Decoder fitted to SOUND FITTED versions
• Sound files produced specifically for the Bachmann Branchline J71 using recordings from real locomotives
• SOUND FITTED models operate on DCC and Analogue control as supplied

LIVERY APPLICATION:

• Authentic liveries applied to all models
• Multiple paint applications employed on each model
• Logos, numerals and text added as appropriate using multi-stage tampo printing incorporating authentic typefaces, logos and colours

SOUNDS

F1 - Sound - On/Off

F2 - Brake (Non-Latching)

F3 - Cylinder Drain Cocks

F4 - Whistle (Playable)

F5 - Normal Load / Heavy Load

F6 - On - Firebox Door Opening / Off - Firebox Door Closing

F7 - Injectors

F8 - Whistle

F9 - Flange Squeal (Speed Related)

F10 - Shovelling Coal (F6 must be On)

F11 - Blower (Sound Only / Stationary and with F6 On - Sound and Lights)

F12 - Hand Brake (locomotive won’t move with Hand Brake applied)

F13 - Water Tank Filling

F14 - Coupling/Un-coupling Clank

F15 - Safety Valve

F16 - Guard's Whistle & Driver’s Response Toot

F17 - Coasting

F18 - On - Sounds Fade Out / Off - Sounds Fade In

F19 - Shunt Mode (Reduces Speed)

F20 - Acceleration/Deceleration Inertia Off

F21 - Volume Control (LATCH = Volume On/Off) or (TRIGGER = cycles 6 Volume Levels)

F22 - Rail Join Clatter

Analogue Users: Please note that normal load running sounds, acceleration steam chuff sounds and any other automatic and randomised sounds will also operate when this model is used on analogue control (DC) straight from the box!
