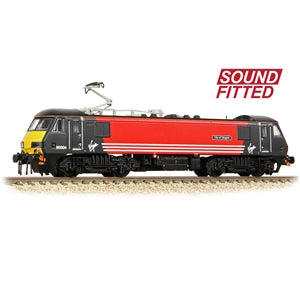

GRAHAM FARISH 371-783SF Class 90/0 90004 'City of Glasgow' Virgin Trains (Original) N GAUGE SOUND FITTED
GRAHAM FARISH 371-783SF Class 90/0 90004 'City of Glasgow' Virgin Trains (Original) N GAUGE SOUND FITTED
- Graham Farish N Scale
- Era 9
- Pristine Virgin Trains (Original) livery
- Named ‘City of Glasgow’
- Running No. 90004
- SOUND FITTED - Fitted with a ESU Loksound V5DDC Sound Decoder – See below for the function list
- Length 126mm
DETAIL VARIATIONS SPECIFIC TO THIS MODEL
- Original ‘Clipped’ Buffers
- Rubbing Plates
- Buckeye Couplings
- TDM Cables fitted to the Buffer Sides
- Large Battery Charger
- Battery Boxes and Switch with Smooth Sides and Sliding Access
GRAHAM FARISH CLASS 90 SPECIFICATION
MECHANISM:
- Coreless, twin shaft motor with two flywheels providing drive to both bogies
- All axle drive
- Electrical pickup from all wheels
- Separate metal bearings fitted to each axle
- Diecast metal chassis block
- Gearing arranged for prototypical running speeds and haulage capabilities
- 9mm (N gauge) wheels to NEM310 standards with authentic profile and detailing
- Close coupling mechanism fitted at each end, each of which is fitted with coupling pockets to NEM355 standards
- Designed to operate on curves of second radius (263.5mm) or greater
DETAILING:
- Finely detailed Pantograph which is poseable
- Bogies constructed from multiple components featuring full relief detail
- Separately applied underframe and roof detail components
- Detailed Cab Interior
- Each model supplied with a full set of model-specific bufferbeam pipework and accessory parts
LIGHTING:
- Directional lighting, switchable on/off at either end on DCC or Analogue control
- Cab lighting, switchable on/off (when used on DCC only)
- Authentic light colours and temperatures selected for each model based on era and application
DCC:
- Next18 DCC decoder interface
SOUND:
- Speaker installed in all models for optimum sound reproduction
- ESU Loksound V5DCC Sound Decoder fitted to SOUND FITTED versions
- Sound files produced specifically for the Graham Farish Class 90 using recordings from real locomotives
- SOUND FITTED models operate on DCC and Analogue control as supplied
LIVERY APPLICATION:
- Authentic liveries applied to all models
- Multiple paint applications employed on each model using BR/TOC specification colours
- Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours
SOUNDS
F0 - Directional Lights - On/Off (plus Light Switch Sound)
F1 - Sound - On/Off (plus Battery Switch and Compressor Sounds)
F2 - Brake
F3 - Low Horn (Playable)
F4 - Two-Tone Horn
F5 - Parking Brake On/Off (Loco won’t move with Parking Brake On)
F6 - On - Pantograph Up / Off - Pantograph Down (Sounds only)
F7 - Flange Squeal (Speed Related)
F8 - Windscreen Wipers
F9 - Air Dump
F10 - On - Guard’s Whistle / Off - Driver’s Response
F11 - Spirax Valve
F12 - Station Announcement
F13 - AWS
F14 - Cab Light (non-Pantograph End) On/Off (plus Light Switch Sound)
F15 - Cab Light (Pantograph End) On/Off (plus Light Switch Sound)
F16 - Coupling Up
F17 - Uncoupling
F18 - On - Cab Door Open / Off - Cab Door Shut
F19 - Uncoupling Movement Cycle
F20 - Directional Lights Off (Non-Pantograph End) (plus Light Switch Sound)
F21 - Directional Lights Off (Pantograph End) (plus Light Switch Sound)
F22 - Fire Alarm Test
F23 - Volume Control (6 levels)
Analogue Users: Please note that any automated drive sounds will be played when this model is used on analogue control (DC) straight from the box!
